X-121-OP-MR

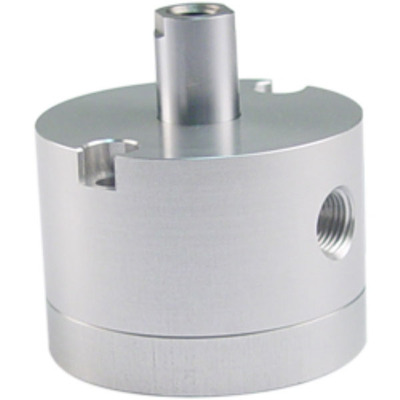

1-1/8" Bore Fabco Air Original Pancake

The Original PANCAKE® Cylinder was designed in 1958 by Alfred W. Schmidt, the founder of Fabco-Air, Inc. This particular type of pneumatic actuator was designed to satisfy the need for short stroke, low profile, compact air cylinders that would fit in very tight spaces.

Today, over 5 decades later, the Original Pancake® Air Cylinder from Fabco-Air, Inc., is still the leader in the compact air cylinder market. The Original Pancake® Air Cylinder Line is often imitated, but never matched regarding features, options, quality, strength, appearance, and longevity.

Features:

• Available in 8 bore sizes: 1/2", 3/4", 1-1/8", 1-5/8", 2", 2-1/2", 3", and 4"
• Standard stroke lengths up to 4"
• The high quality, cylinder bodies are machined from the highest quality aluminum bar-stock
• The cylinder bodies are clear anodized for superior appearance and corrosion resistance
• Hard chrome plated stainless steel piston rod adds longevity to the cylinder
• A non-metallic, Composite rod bushing is a standard feature that strengthens one of the primary load bearing points on an air cylinder: the rod bushing
• Cylinders are pre-lubed with Magnalube-G® grease
• Pressure rated to 250 PSIG pneumatic and 500 PSIG hydraulic service
• Magnetic piston option available for cylinder position sensing
• Multitude of standard options available
