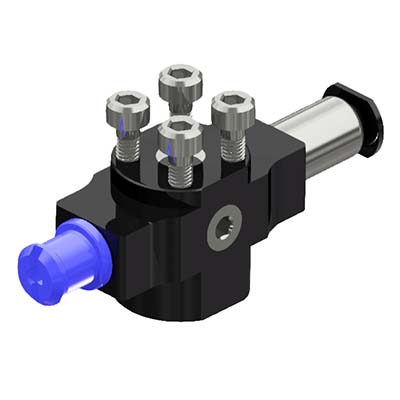

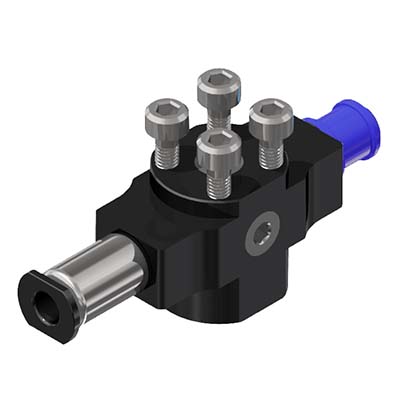

AGS-C-X2.5-2

0.7CFM 26.9inHg AGS-C vacuum venturi.

This venturi can be used in de-centralized vacuum systems where the vacuum suction cups can be mounted directly to the venturi body. Inline vacuum venturi where the compressed air connection is in direct line to the exhaust make for a very simplified installation. Optional vacuum ports can be connected to a vacuum sensor or gauge.

• Multi function coaxial cartridge technology
• 18.5mm Overall height (face to cup fitting)
• Compact and lightweight
• Integrated silencer
• Multiple machine mounting options
• Cup can be mounted directly to venturi body
• 0.7CFM
• 26.9"Hg
• Replacement for VGS2010.AJ.00.BA
• Four bolt flush face mounting included
