N4H230C-08L

N4H230C-08L
N4H230C-08L
N4H230C-08L
Please call
N4H230C-08L
N4H230C-08L
N4H230C-08L
N4H230C-08L

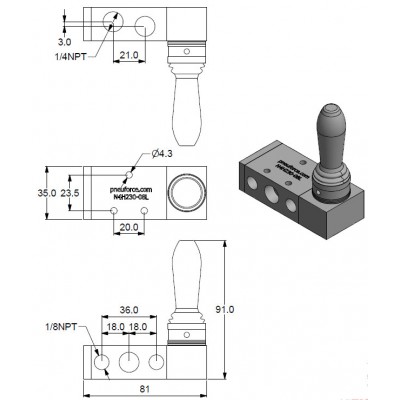

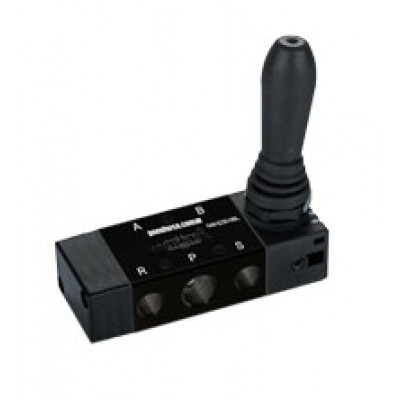

Hand Lever Valve 5/3 (5 port, 3 position, center all ports closed) 1/4NPT Detent.

  • 1/4NPT Ports
  • Detent Latching Operation (push for on and pull for off with center closed)
  • 5/3 (5 port, 3 position, center all ports closed) or 5-way operation

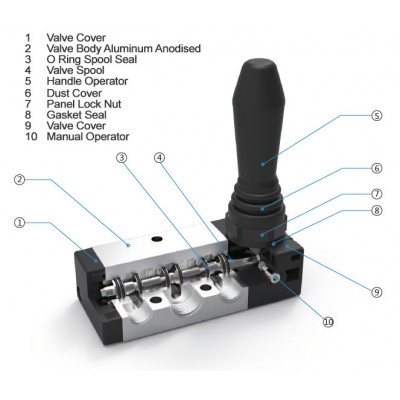

  • Spool valve 5 port design
  • Pre lubricated
  • Operating Pressure: 21 to 115 PSI
  • 40 micron filtered air or inert gas

Link to Pneuforce Data Sheets
Please Login or Register to review
Please Login or Register to review
Ships from Indianapolis, USA
$130.00
  • Availability: Please call
Add to Cart
Buy Now Question about this product?
Add to Wish List Compare this Product
