N4H430C-15S

N4H430C-15S

N4H430C-15S

N4H430C-15S

Please call

N4H430C-15S

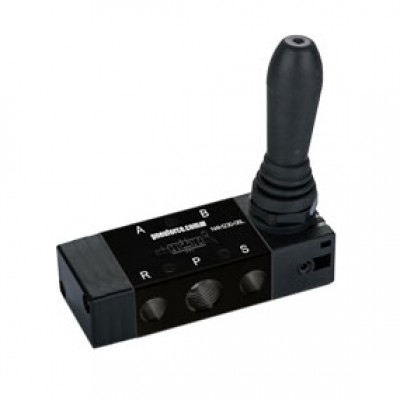

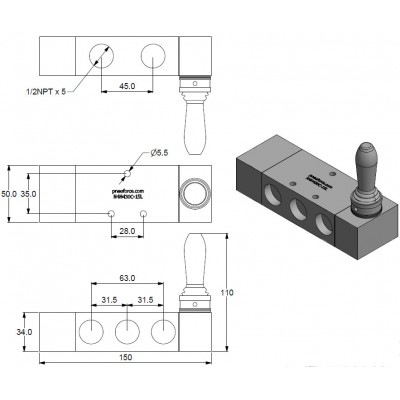

Hand Lever Valve 5/3 (5 port, 3 position, center all ports closed) 1/2NPT Spring Return Center.

1/2NPT Ports
Non latching operation, spring return handle
5/3 (5 port, 3 position) or 5-way operation
Spool valve 5 port design
Pre lubricated
Operating Pressure: 21 to 115 PSI
40 micron filtered air or inert gas

Please Login or Register to review

Please Login or Register to review

Ships from Indianapolis, USA

$155.00

Availability: Please call
