N4H230C-08S

N4H230C-08S

N4H230C-08S

N4H230C-08S

Please call

N4H230C-08S

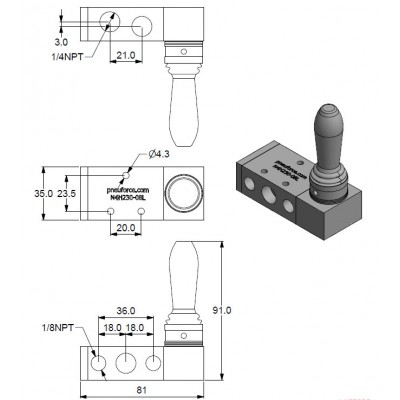

Hand Lever Valve 5/3 (5 port, 3 position, center all ports closed) 1/4NPT Spring Return Center.

1/4NPT Ports
Non latching design, center position rest
5/3 (5 port, 3 position, center all ports closed) or 5-way operation
Spool valve 5 port design
Pre lubricated
Operating Pressure: 21 to 115 PSI
40 micron filtered air or inert gas

Please Login or Register to review

Please Login or Register to review

Ships from Indianapolis, USA

$120.00

Availability: Please call
