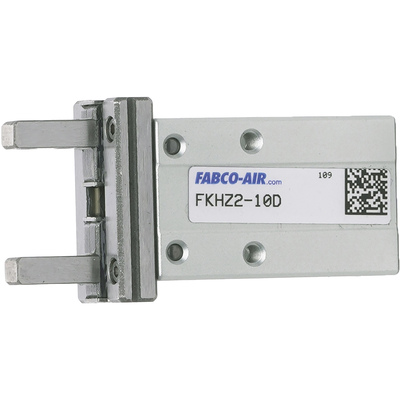

FKHZ-20D

Fabco Air FKHZ Compact Parallel Grippers

The FKHZ Series are parallel pneumatic grippers. The compact design of the FKHL Series is ideal for various size work-piece applications. The FKHZ Series is a wide opening parallel pneumatic gripper.

Features

• Available in 4 bore sizes: 10mm, 16mm, 20mm, and 25mm
• Magnetic piston is standard Integrated sensor slots in the gripper body enable easy mounting of sensors for both "open" and "closed" position sensing
• Aluminum gripper body is hard-coated to ensure abrasion and to combat corrosion
• No additional lubrication is required.

Specifications

• Operating pressure ranges from 30 psi to 100 psi
• Operating media is compressed air
• Internal Gripping Force at 72 psi:10mm Bore: 3.8 lbf, 16mm Bore: 10.1 lbf, 20mm Bore: 14.8 lbf, 25mm Bore: 23.3 lbf
