FKHT-50

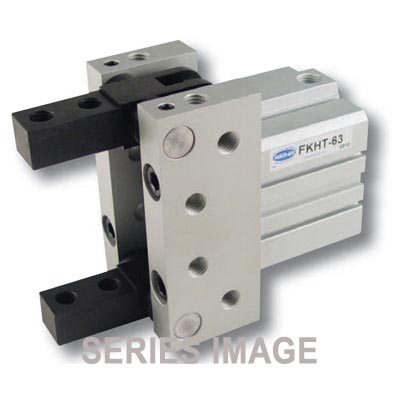

Fabco Air FKHT Toggle Type Gripper

The FKHT Series are toggle type angular pneumatic grippers. This gripper series is very robust and ideal for heavy work-pieces. The toggle design securely holds workloads even if the air pressure drops.

Features

• Available in 4 bore sizes: 32mm, 40mm, 50mm, and 63mm
• Tapped mounting holes on 5 different surfaces
• Magnetic piston is standard
• Integrated sensor slots in the gripper body enable easy mounting of sensors for both "open" and "closed" position sensing
• Aluminum gripper body is hard-coated to ensure abrasion and to combat corrosion
• No additional lubrication is required.

Specifications

• Operating pressure ranges from 15 psi to 100 psi
• Operating media is compressed air
• Opening: -2° to 28°
• Effective Gripping Force at 58 psi:32mm Bore: 22 lbf, 40mm Bore: 44 lbf, 50mm Bore: 67 lbf, 63mm Bore: 89 lbf
