FRC25X180

FRC25X180
4-6 Weeks
FRC25X180

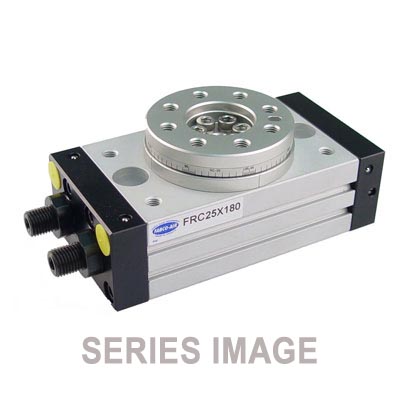

Fabco-Air FRC Rack-and-Pinion Rotary Actuator

The Fabco-Air FRC25X180 is a FRC Series rotary actuator. The source product description identifies this family as a compact rack-and-pinion rotary design with a mechanism intended to minimize backlash.

The source description lists magnetic pistons as standard and describes the rotary family as easily interchangeable with popular competing products. For the FRC Series, the source additionally identifies larger sizes with more torque, standard adjustable air cushions, and optional shock-absorber cushioning.

FRCRotary Actuator
Rack & PinionRotary Mechanism
CompactSpace-Saving Design
MagneticPistons Standard

Technical Specifications

SpecificationDetails
Product TypeFabco-Air FRC Rotary Actuator
SeriesFRC
ModelFAB FRC25X180
Product NameFRC25X180
MechanismRack-and-pinion
Design GoalCompact, space-saving rotary motion
BacklashMechanism designed to minimize backlash
PistonsMagnetic pistons standard
FRC Additional FeaturesLarger sizes with more torque; adjustable air cushions standard; optional shock absorber cushioning

Compact Pneumatic Rotary Motion

Rack-and-pinion actuation converts pneumatic piston motion into rotary output, providing controlled angular movement in a compact actuator package.

CompactRotary Package
Rack & PinionMotion Conversion
Low BacklashDesign Focus
MagneticPistons

Key Features

  • Compact rack-and-pinion rotary actuator
  • Mechanism designed to minimize backlash
  • Magnetic pistons standard
  • Complete model: FAB FRC25X180
  • FRC family includes larger sizes with more torque
  • Adjustable air cushions standard on FRC
  • Optional shock absorber cushioning on FRC

Typical Applications

  • Rotary indexing
  • Part turning and orienting
  • Packaging machinery
  • Assembly automation
  • Fixture rotation
  • OEM machine design

FRC Rotary Actuator Function

Pneumatic pressure moves the internal piston and rack, which drives the pinion to create rotary output. This arrangement provides compact angular motion for machine automation.

Important: Confirm the exact model, rotation angle, torque requirement, mounting, cushioning and any model-specific options before ordering.

Download Fabco-Air FRA/FRC Rotary Datasheet

Frequently Asked Questions

How does a rack-and-pinion rotary actuator work?

Pneumatic piston motion drives a rack, which rotates a pinion to produce angular output.

Is the design compact?

Yes. The source description specifically identifies a compact, space-saving design.

Is backlash addressed in the design?

The source description states that the mechanism is designed to minimize backlash.

Are magnetic pistons standard?

Yes. Magnetic pistons are listed as standard.

What is special about the FRC Series?

The source description lists larger sizes with more torque, standard adjustable air cushions and optional shock-absorber cushioning for FRC models.

Can I assume the rotation angle from the model code?

Use the Fabco-Air datasheet to confirm the exact rotation angle and configuration for the complete model.

What applications suit these actuators?

Typical uses include indexing, turning, orientation, fixture rotation and other automated angular motions.

What should I verify before ordering?

Confirm model, rotation angle, required torque, mounting, cushioning and operating conditions.
