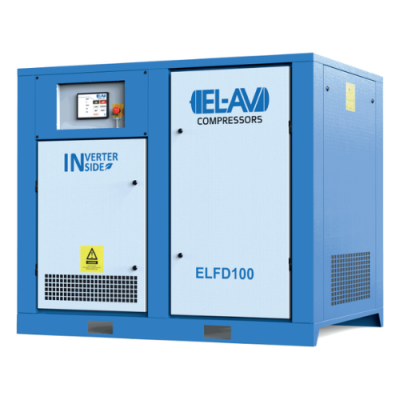

ELFD100INV

The EL-AV ELFD100INV rotary screw air compressor provides high capacity compressed air for demanding industrial environments. Featuring a permanent magnet motor and integrated VFD control, the compressor automatically adjusts speed to maintain optimal performance and energy efficiency.

This heavy duty compressor is ideal for large manufacturing facilities, industrial processing plants, automated production lines, and high demand compressed air systems.

Key Specifications

1. Model: ELFD100INV
2. Motor Power: 100HP
3. Air Capacity at 116 PSI: 94 – 470 CFM
4. Air Capacity at 145 PSI: 84 – 420 CFM
5. Capacity at 8 Bar: 2660 – 13300 l/min
6. Capacity at 10 Bar: 2380 – 11900 l/min
7. Voltage: 460V 3 Phase 60Hz
8. Drive Motor: Permanent Magnet iPM TEFC (IP54)
9. Noise Level: 72 dB(A)
10. Dimensions: 72 × 47 × 80 in
11. Weight: 1350 kg (2976 lbs)
12. Air Discharge Connection: G2 BSP

The EL-AV ELFD100INV combines high capacity rotary screw compressor performance with advanced VFD control technology for efficient industrial compressed air systems.
