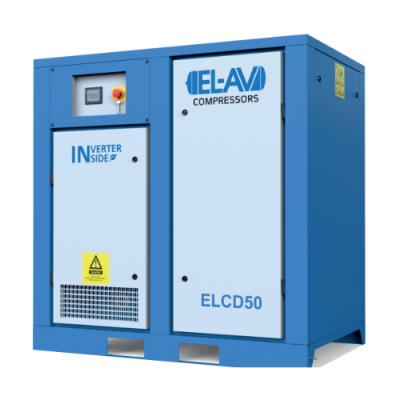

ELCD50INV

The EL-AV ELCD50INV rotary screw air compressor is engineered for high capacity industrial compressed air systems requiring reliable performance and energy efficiency. The permanent magnet motor and integrated VFD control automatically adjust compressor speed to meet system demand.

This compressor is well suited for large manufacturing plants, industrial production lines, packaging systems, and facilities requiring consistent compressed air supply.

Key Specifications

1. Model: ELCD50INV
2. Motor Power: 50HP
3. Air Capacity at 116 PSI: 46 – 230 CFM
4. Air Capacity at 145 PSI: 40 – 198 CFM
5. Capacity at 8 Bar: 1300 – 6500 l/min
6. Capacity at 10 Bar: 1120 – 5600 l/min
7. Voltage: 460V 3 Phase 60Hz
8. Drive Motor: Permanent Magnet iPM TEFC (IP54)
9. Noise Level: 66 dB(A)
10. Dimensions: 56 × 36 × 57 in
11. Weight: 680 kg (1500 lbs)
12. Air Discharge Connection: G1 1/2 BSP

The EL-AV ELCD50INV provides dependable rotary screw compressor performance and energy-efficient operation for demanding industrial compressed air applications.
