ELBD30INV

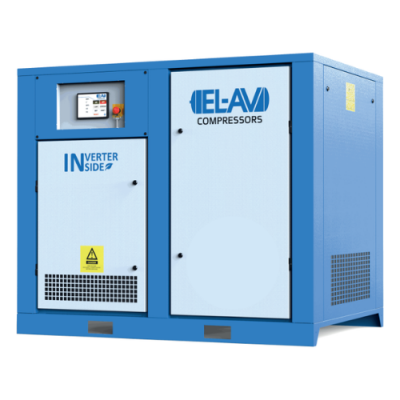

The EL-AV ELBD30INV rotary screw air compressor provides efficient and reliable compressed air for demanding industrial environments. Equipped with a permanent magnet motor and integrated VFD control, the compressor automatically adjusts speed to match system demand, reducing energy consumption while maintaining stable air output.

The EL-AV EL+ Series is designed for manufacturing facilities, machine shops, packaging operations, and automated production systems requiring dependable compressed air performance.

Key Specifications

1. Model: ELBD30INV
2. Motor Power: 30HP
3. Air Capacity at 116 PSI: 26 – 132 CFM
4. Air Capacity at 145 PSI: 25 – 124 CFM
5. Capacity at 8 Bar: 750 – 3750 l/min
6. Capacity at 10 Bar: 700 – 3500 l/min
7. Voltage: 460V 3 Phase 60Hz
8. Drive Motor: Permanent Magnet iPM TEFC (IP54)
9. Noise Level: 65 dB(A)
10. Dimensions: 56 × 36 × 57 in
11. Weight: 490 kg (1080 lbs)
12. Air Discharge Connection: G1 BSP

The EL-AV ELBD30INV delivers high efficiency rotary screw compression and dependable industrial performance for compressed air systems.
