FDH16X15

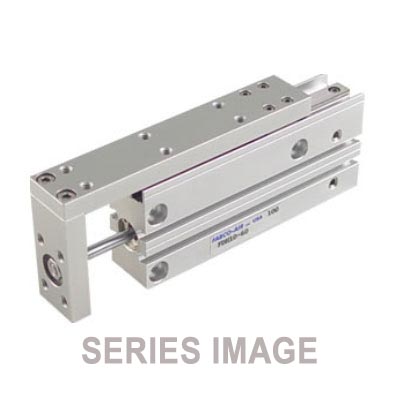

Fabco Air Finger Slides FDH Series

Series FDH is a compact finger slide that employs a rail bearing system for smooth operation. The body is built from anodized aluminum with stainless rod coupler nuts, and houses a repairable built-in air cylinder.

Features:

• Magnetic piston standard
• Four 4mm keyhole sensor mounting slots, two per side
• Rubber bumpers provide cushioned stop
• Tapped holes on top toolplate
• Clear anodized toolbar and toolplate
• Side thru holes with C’bores in body
• Side, bottom, and rear tapped mounting holes
• Ports accessed on either side and rear
• Toolbars are slightly narrower than body, allowing side mounting with clearance between toolbar and mounting surface
